High strength galvanized Z-section steel
Z-section steel is a common cold-formed thin-walled section steel, with a thickness of 1.6-3.0mm and a section height of 120-350mm. The processing materials are hot rolled (painted) and galvanized. Its supporting products are: color steel tiles; Rock wool sandwich board; Floor bearing plate, etc. It is mostly used on the roof of buildings.
Product Specification
|
Product Name |
Z-section steel |
|
Thickness |
1.0--3.0mm |
|
Material |
Galvanized, hot dip galvanized |
|
Steel variety |
Q235B\Q345B\Q355B |
|
length |
1000 to 12000mm |
|
MOQ |
1000m per size |
|
Delivery time |
10--20days |

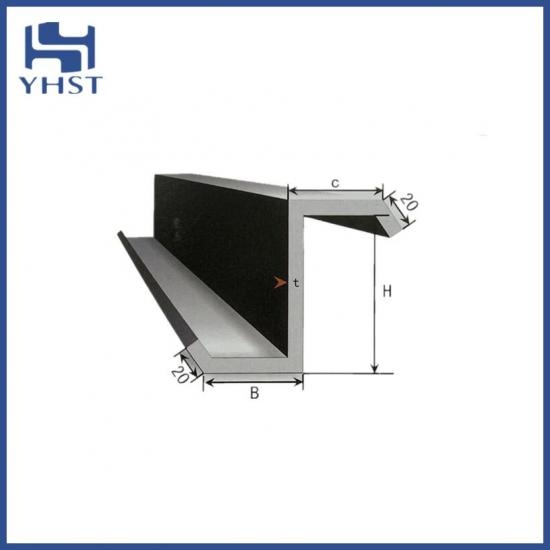

| Tpye | Cleansing moment of inertia cm4 | Radius of gyration | Section modulus cm4 | ||
| HXBXCXT | lx | ly | Rx | wx | wy |
| 100x40x20x2.0 | 60.62 | 17.2 | 1.256 | 12.12 | 40 |
| 100x40x20x2.5 | 73.05 | 20.32 | 1.235 | 14.61 | 55 |
| 120x50x20x2.0 | 107.77 | 30.51 | 1.519 | 17.96 | 67 |
| 120x50x20x2.5 | 130.7 | 36.36 | 1.479 | 21.78 | 77 |
| 120x50x20x3.0 | 152.11 | 41.55 | 1.474 | 25.35 | 86 |
| 140x50x20x2.5 | 188.5 | 36.36 | 1.503 | 26.93 | 7.458 |
| 140x50x20x3.0 | 219.8 | 41.55 | 1.48 | 31.41 | 8.567 |
| 160x60x20x2.5 | 290.3 | 58.78 | 1.767 | 36.29 | 10.00 |
| 160x70x20x2.5 | 321.4 | 88.57 | 2.014 | 40.17 | 12.88 |
| 160x70x20x3.0 | 376.9 | 102.3 | 1.99 | 47.11 | 17.94 |
| 180x70x20x2.5 | 422.9 | 88.58 | 2.028 | 46.99 | 12.88 |
| 180x70x20x3.0 | 496.7 | 102.3 | 2.003 | 55.16 | 14.94 |
| 200x70x20x2.5 | 541.5 | 88.58 | 2.03 | 54.15 | 12.88 |
| 230x75x25x3.0 | 951.37 | 138.9 | 2.212 | 82.73 | 18.90 |
| 250x75x25x3.0 | 1160.1 | 138.9 | 2.205 | 92.8 | 18.90 |
| 300x85x25x4.0 | - | - | - | - | - |
| Note: Special specification section steel can be adjusted H: 80-400 (mm), B: 40-100 (mm), T: 1.5-4.0 (mm) in the above size, and can produce uneven Z section steel | |||||
Application
Cold formed Z-shaped steel has the advantages of adjustable specification and size and large compressive strength. It is widely used in automobile, railway vehicle, building doors and windows, transportation, shelf, electrical cabinet, highway guardrail, building steel structure, container, steel formwork and scaffold, solar support shipbuilding, bridge, power transmission tower, steel sheet pile, cable bridge, agricultural machinery, furniture, storage, guide rail, keel steel Vegetable greenhouses, pipe supports, municipal construction and other fields.
Product display
Packing & Delivery
◆ Packing:
Seaworthy packing standards:
Packed in stack with steel strips,and then loaded in containers,
if you have special packing requirements, please feel free to discuss with us,thank you.
◆Delivery:
Delivery time for small order with stock materials: 7-10 days;
Delivery time for special requirements and thickness: 20-30 days;
◆Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
